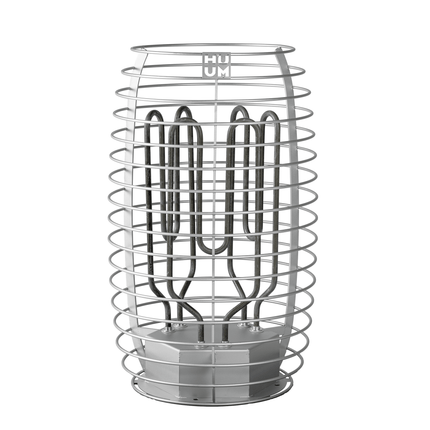

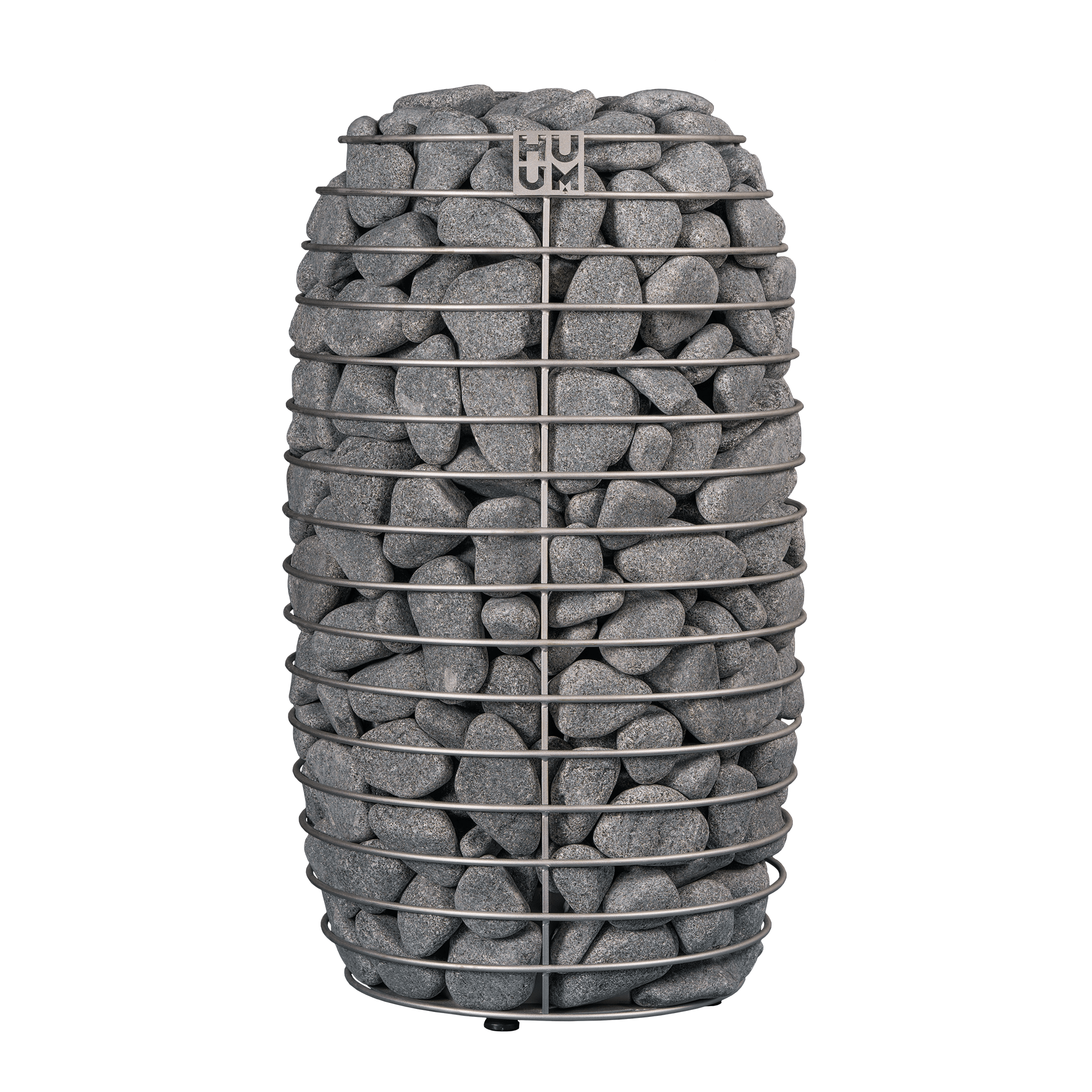

HUUM HIVE Mini Electric Sauna Heater
About this HUUM Electric Sauna Heater
*stones & controller to be purchased separately*
(We recommend 10x boxes (150 kg) of Huum 5-10 cm stones)

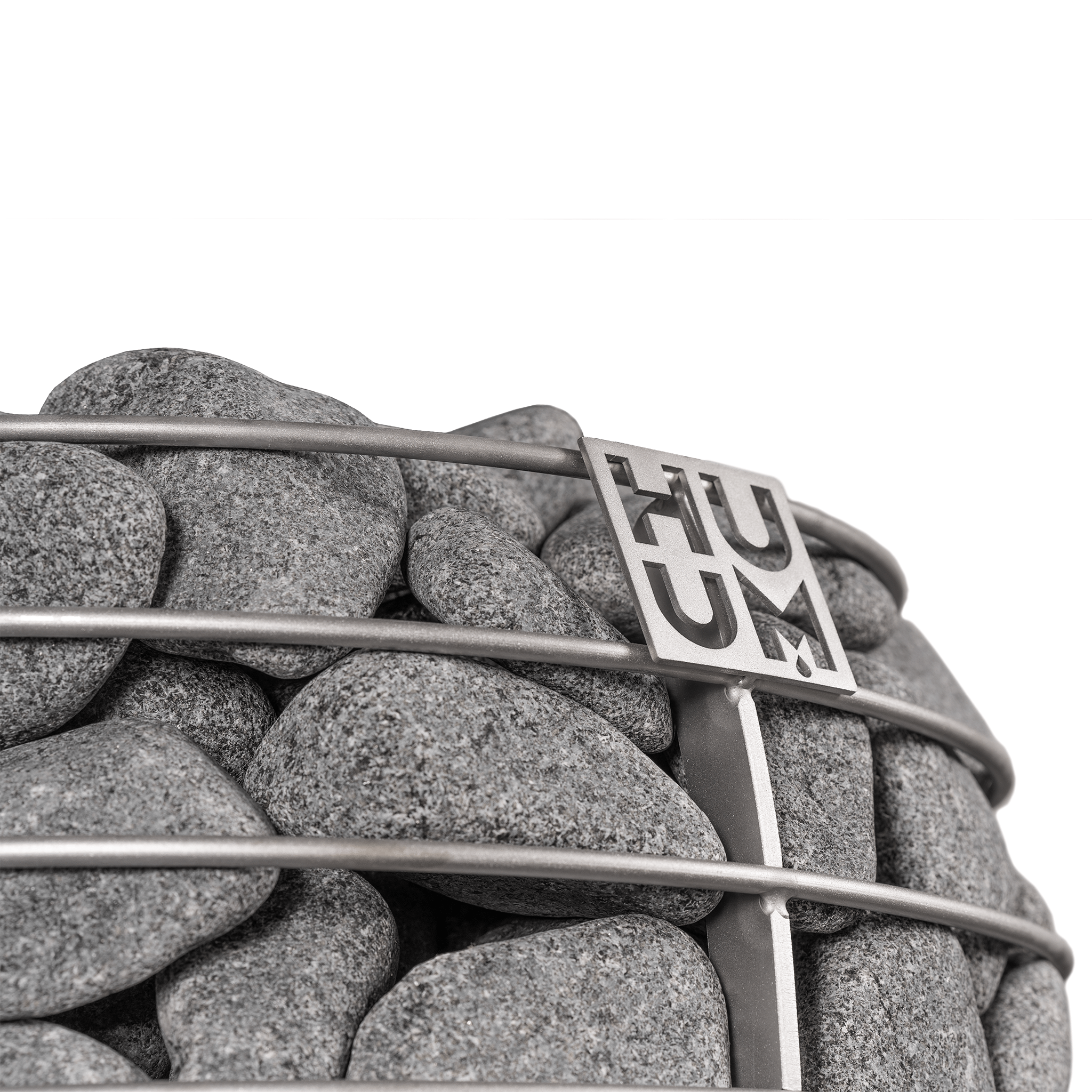

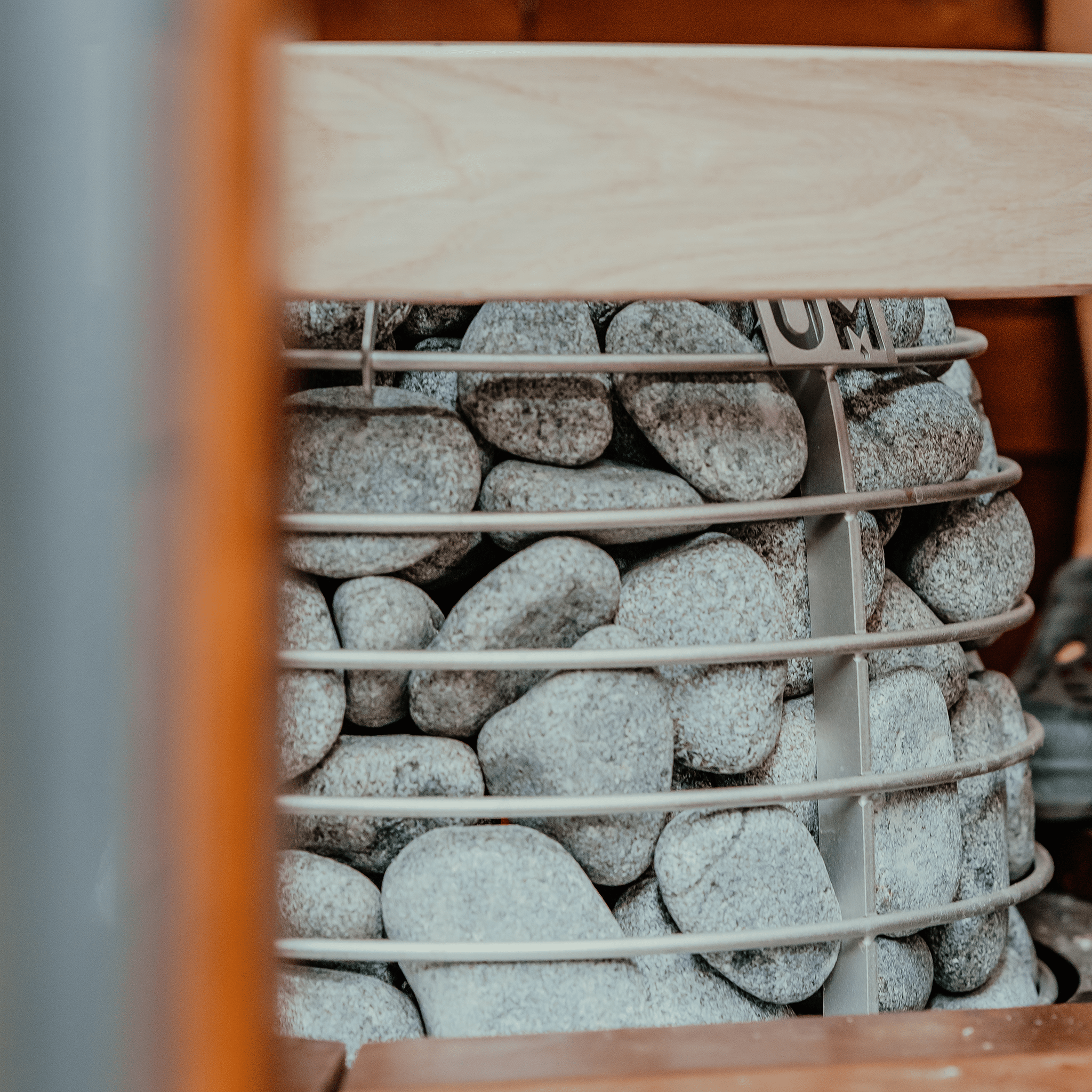

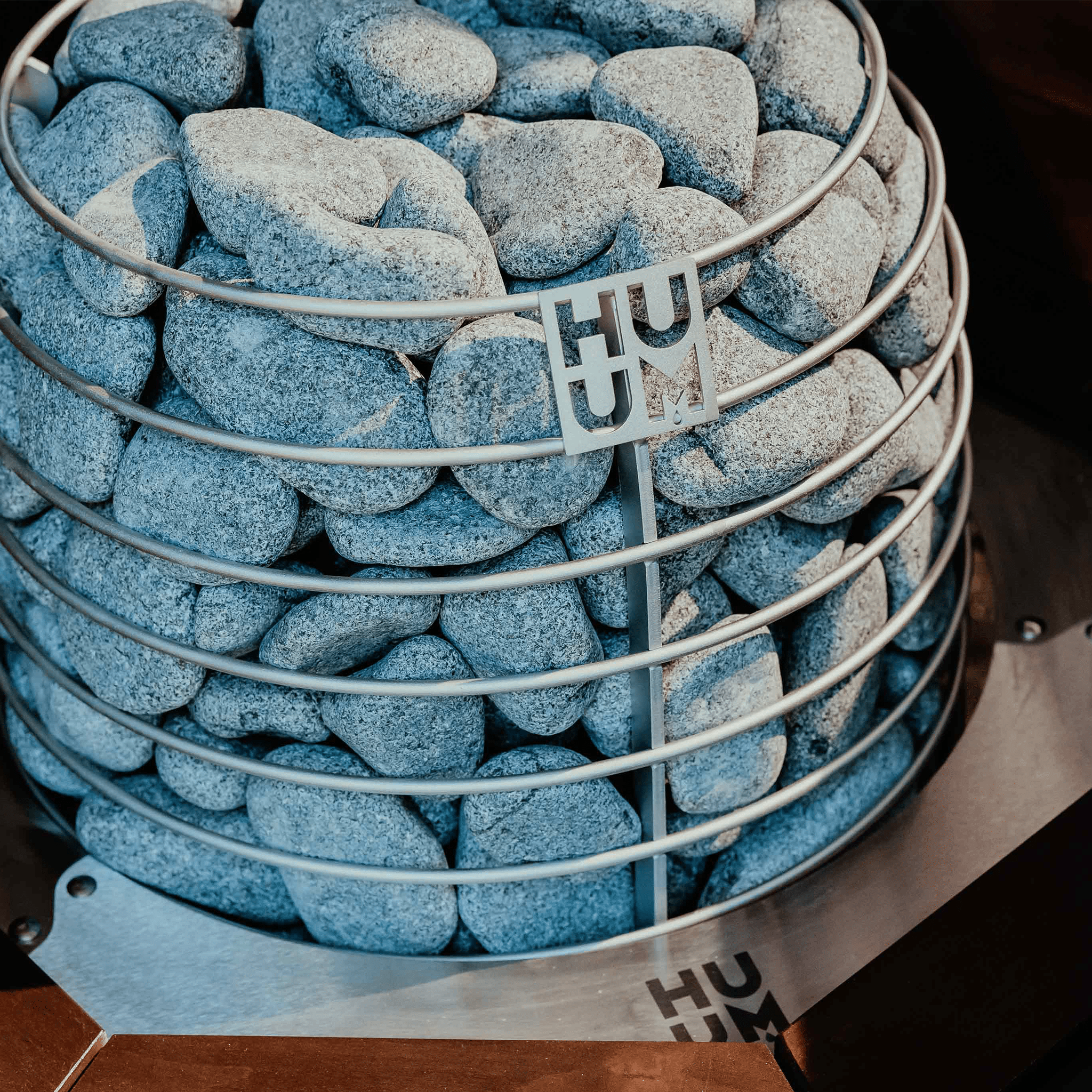

The HUUM HIVE Mini electric sauna heater features high-quality materials with and award-winning design inspired by nature.
The HUUM HIVE Mini is a slimmer version of the HIVE stove. While HIVE is intended for larger saunas, the HIVE Mini fits up to 375 lb / 150 kg of sauna stones and is suitable for smaller saunas.

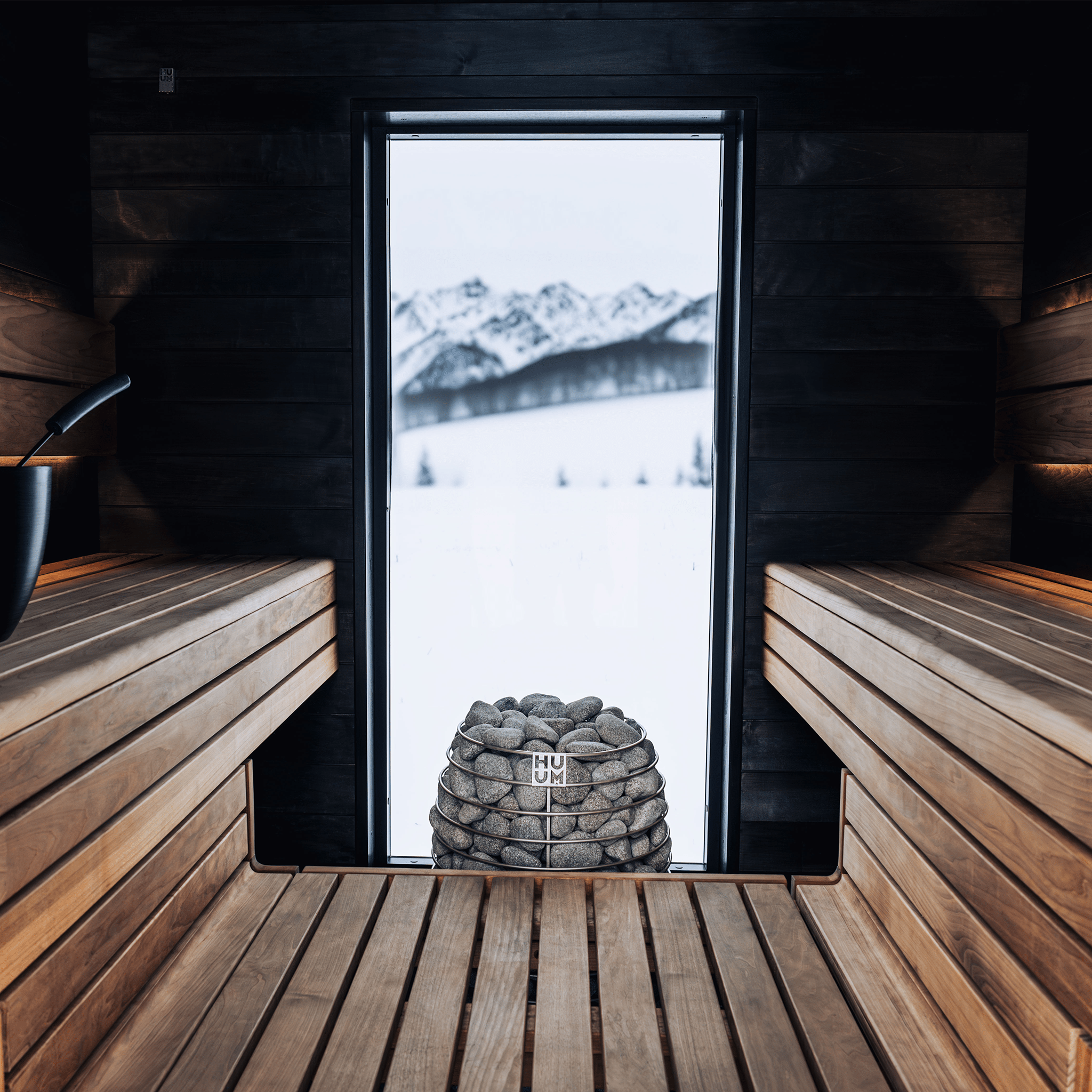

HUUM heaters are manufactured in Estonia, where they are crafted from stainless steel and other high-quality materials. Combined with a stylish, minimalistic Nordic design, the HUUM HIVE makes a statement piece in a home sauna.
Controller: Depending on the controlling system you will opt for, the heater can be purchased either with the UKU Local (an easy-to use controller without Wi-Fi or mobile functionality), or the UKU Wi-Fi Controller (a remote-control option with Wi-Fi capabilities).

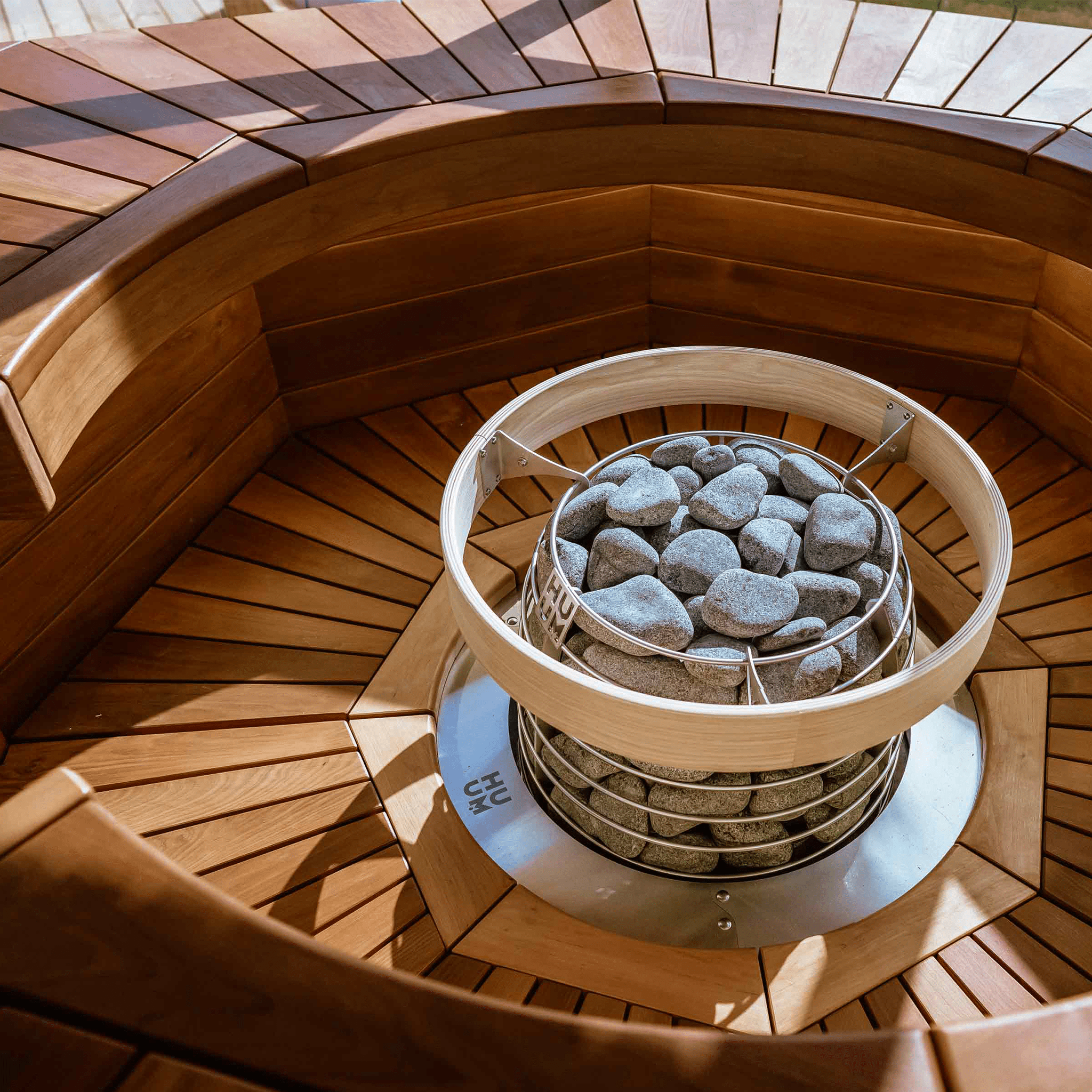

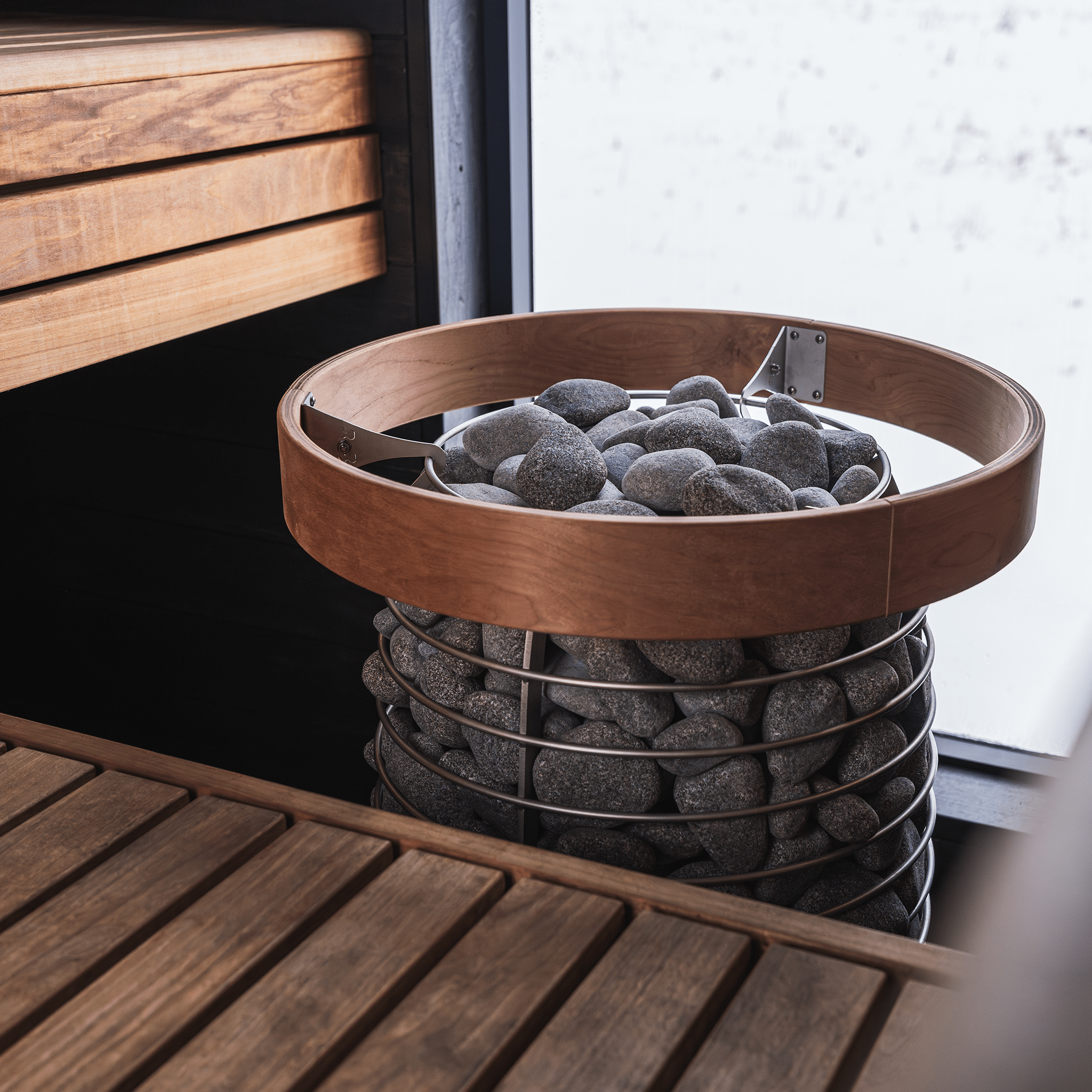

Air Tunnel: As of the 15/04/2024, all Hive heaters now include the Hive Air Tunnel as standard and it does not need to be bought separately.

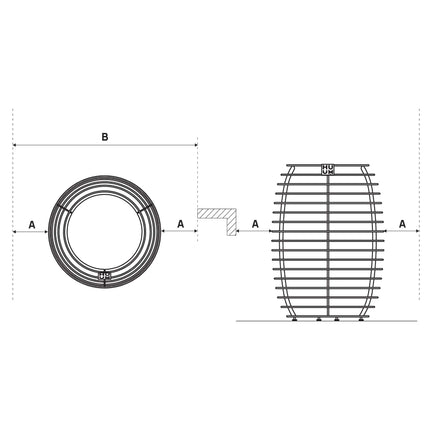

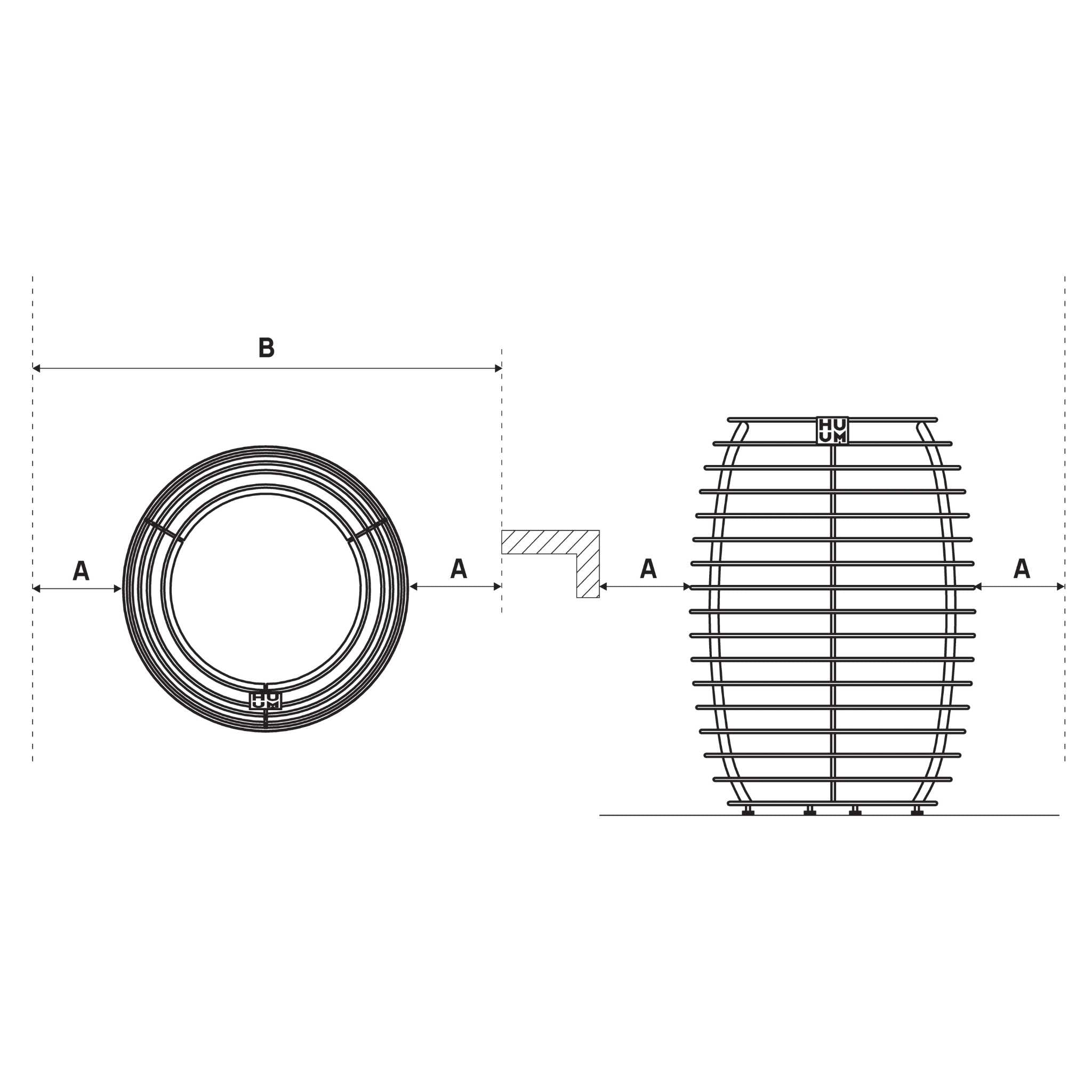

Safety Distances: See the wider image bank of this heater for a diagram about this heater's safety distances:
6kW: A= 2.37 in, 60 mm & B= 22.83 in, 580 mm;
9kW: A= 3.55 in, 90 mm & B= 25.2 in, 640 mm;
10.5kW: A= 4.33 in, 110 mm & B= 26.77 in, 680 mm
*SUFFICIENT AMOUNT OF STONES TO BE PURCHASED SEPARATELY
We recommend 10x boxes (150 kg) of Huum 5-10 cm stones.
Product Specification
This heater must be installed by a qualified electrician. The HIVE Mini heater can be installed on both single-phase 240VAC and three-phase 400VAC power supplies.
Please refer to the "HUUM Electric Sauna Heaters - Single Phase Connection" in the "Downloadable Files" tab if installing the electric heater on a single-phase power supply.
Please ask your electrician to take photos when installing the heater for the first time in the unlikely case there are any issues with the heater further down the line. We will ask for these to diagnose the issue as best as possible.
| Model |
HIVE Mini 6
|
HIVE Mini 9
|
HIVE Mini 11
|
|
Sauna room size
|
5-9 m³
|
8-13 m³
|
10-16 m³
|
|
Effect
|
6 kW
|
9 kW
|
10.5 kW
|
|
Dimensions
|
|
|
|
|
Height
|
750 mm
|
750 mm
|
750 mm
|
|
Width
|
460 mm
|
460 mm
|
460 mm
|
|
Depth
|
460 mm
|
460 mm
|
460 mm
|
|
Empty weight
|
14 KG
|
16 KG
|
16 KG
|
|
Stone capacity
|
150 KG (10 packs)
|
150 KG (10 packs)
|
150 KG (10 packs)
|
|
Electrical (3N~ 400V)
|
|
|
|
|
Front Fuse
|
3 X 10 A
|
3 X 16 A
|
3 X 16 A
|
|
Cable Gauge
(UKU Main Module Input)
|
5-core 1.5 mm² SWA
|
5-core 2.5 mm² SWA
|
5-core 2.5 mm² SWA
|
|
Cable Gauge
(Heater Input)
|
5-core 1.5 mm² H07RN-F
|
5-core 2.5 mm² H07RN-F
|
5-core 2.5 mm² H07RN-F
|
|
Electrical (1N~ 230V)
|
|
|
|
|
Front Fuse
|
1 X 32 A
|
1 X 40 A
|
1 X 50 A
|
|
Cable Gauge
(UKU Main Module Input)
|
3-core 6 mm² SWA
|
3-core 10 mm² SWA
|
3-core 10 mm² SWA
|
|
Cable Gauge
(Heater Input)
|
7-core 2.5 mm² SiHF
|
7-core 2.5 mm² SiHF
|
7-core 2.5 mm² SiHF
|
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimized for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA- certified.
If you want to learn more about our HUUM heaters and explore more options, click on the following link: Our HUUM sauna heater collection.
HUUM UKU Controllers
The HUUM HIVE can be purchased either with the UKU Local or the UKU Wi-Fi. Below are the features of the controller options.
UKU Local:
-
For heaters up to 18kW
-
Connectable to lights/ventilation and steamer
-
Overheating protection
-
Timer
-
Child safety lock
- Available in a number of different colours, including black, white, wooden surrounds
UKU Wi-Fi:
-
For heaters up to 18 kW
-
Remote control via mobile app; Android / iOS
-
Connectable to lights
-
Unlimited users
-
Door magnet
-
Overheating protection
-
Timer
-
Child safety lock
- Available in Black Glass or Mirror (Gold upon request too)
Warranty Information
For full details on product warranty, see HUUM's Limited Warranty Terms and Conditions. The heating elements are not included in the warranty.
