Description

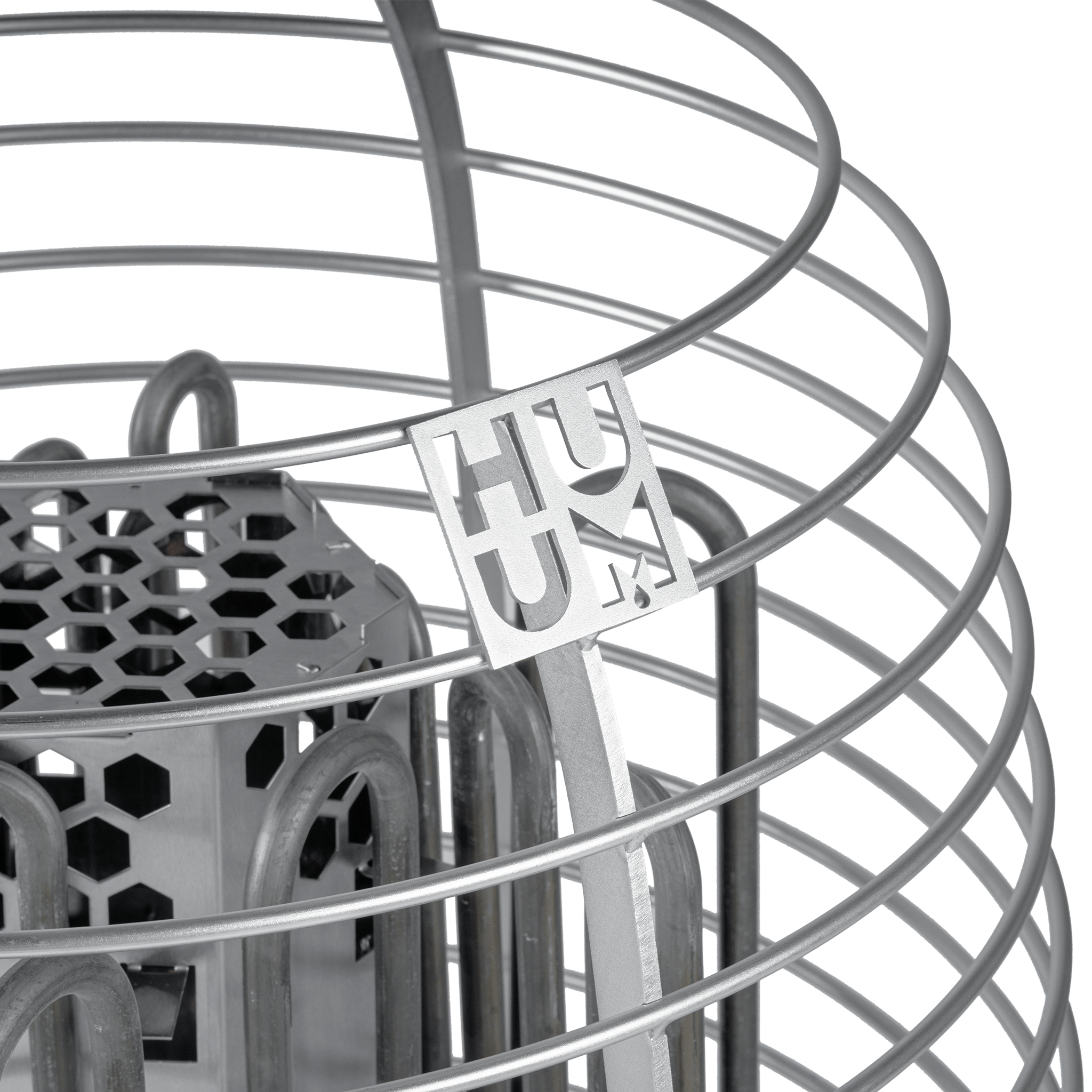

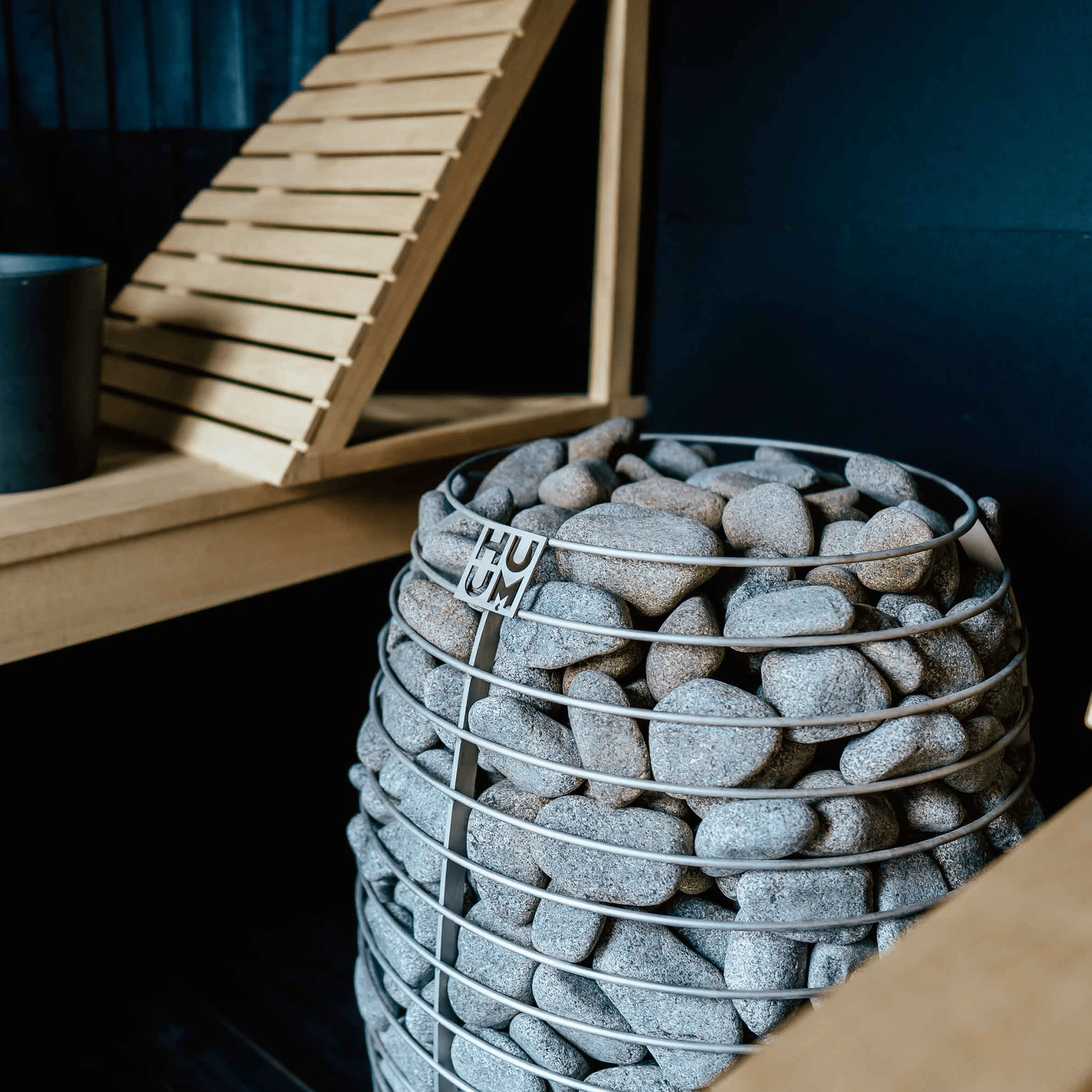

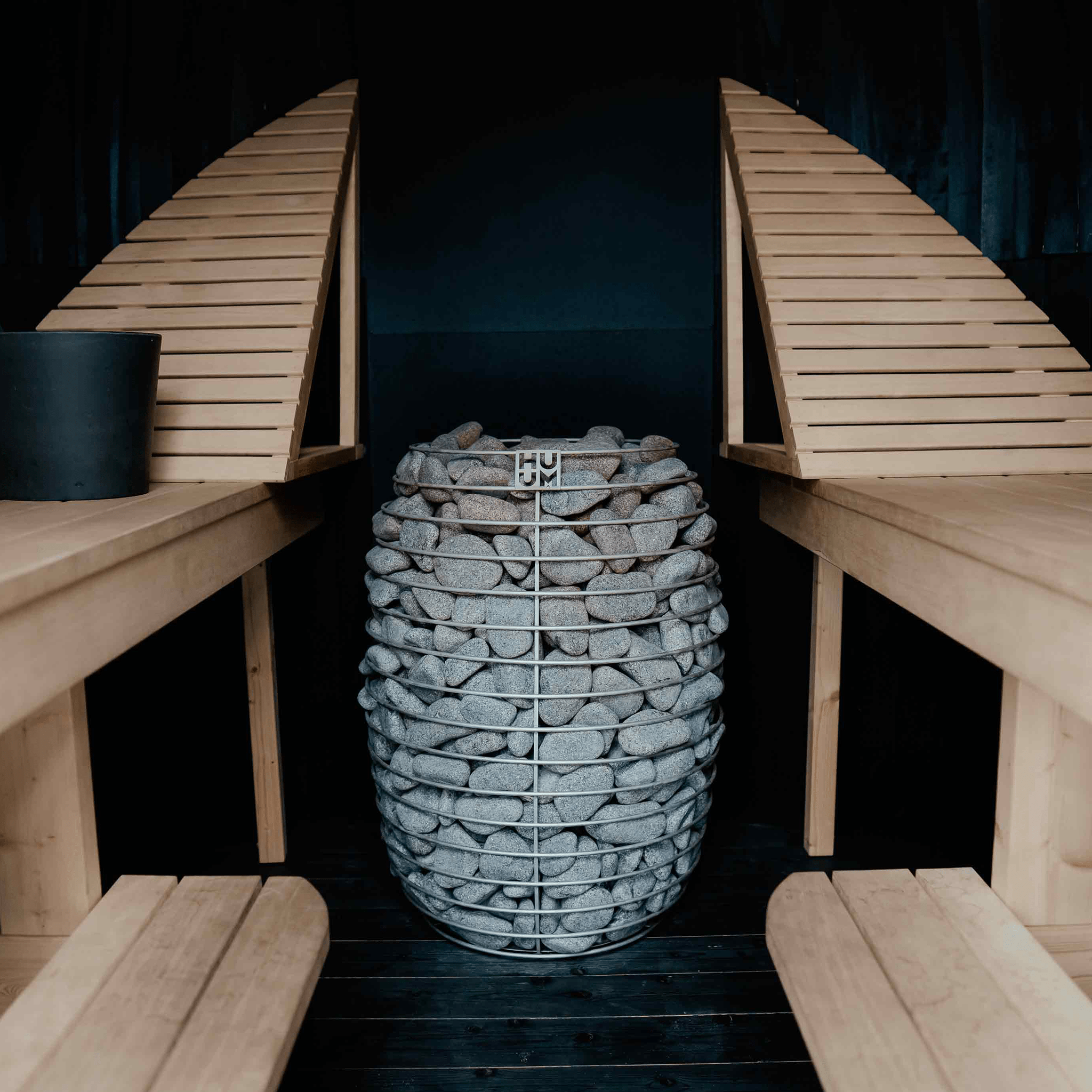

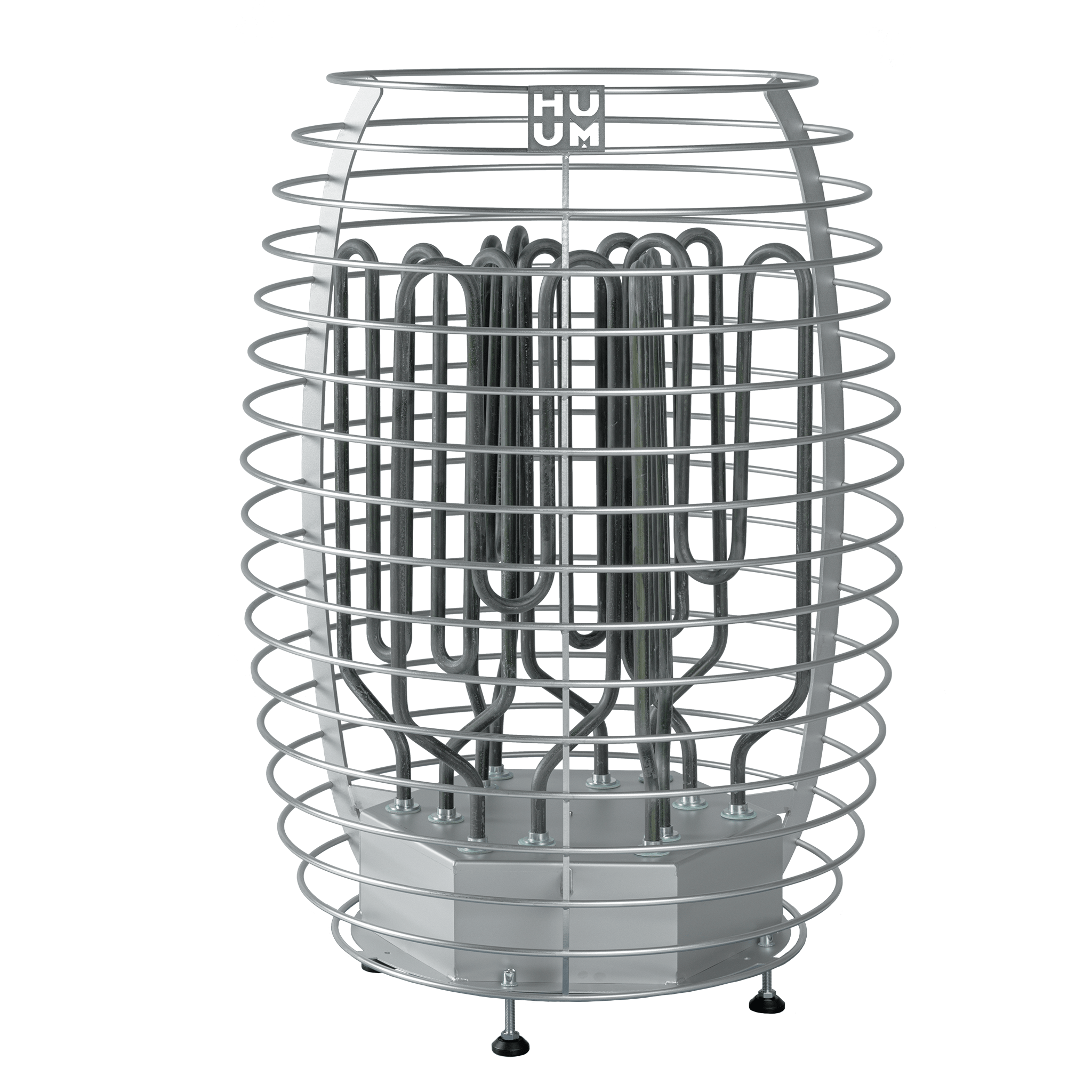

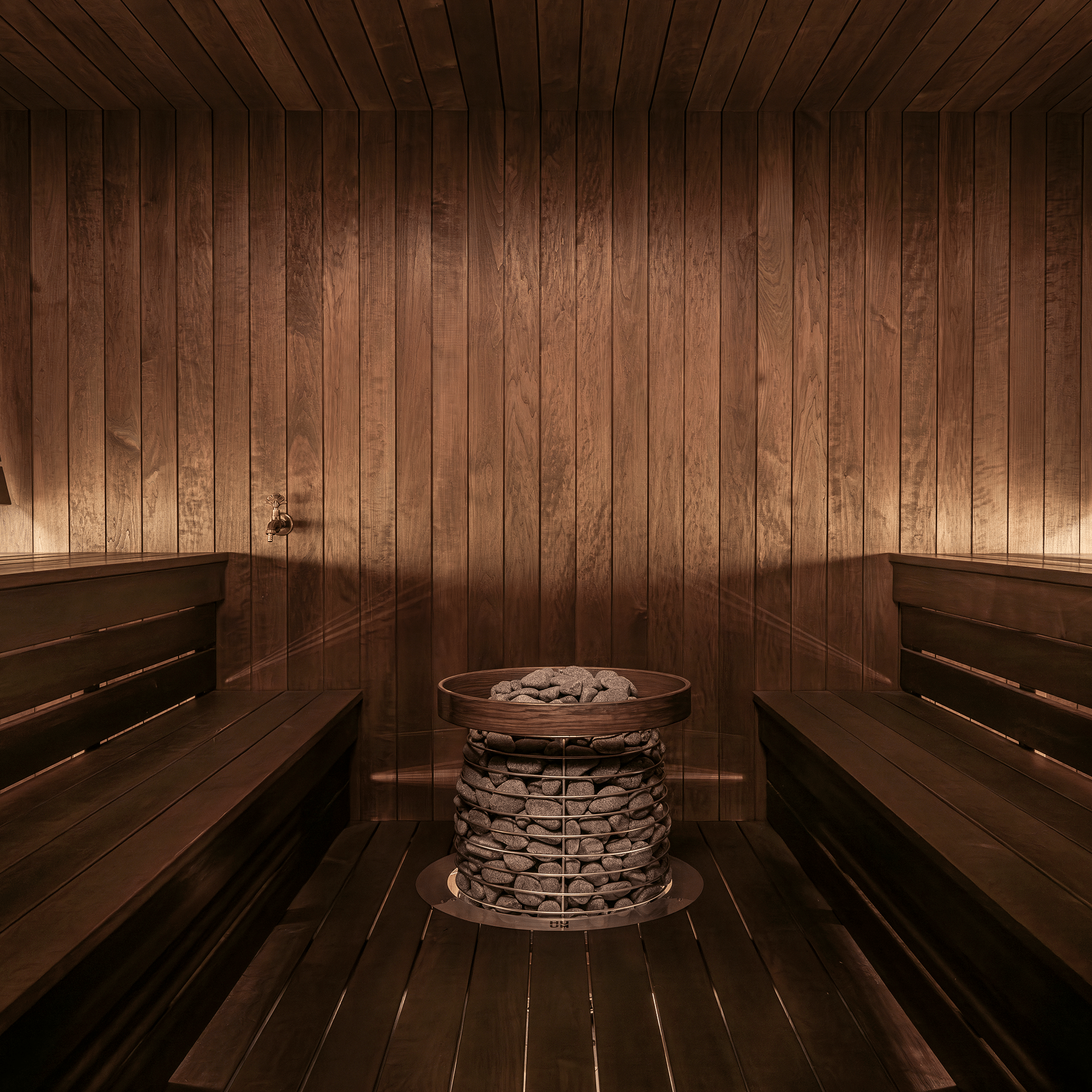

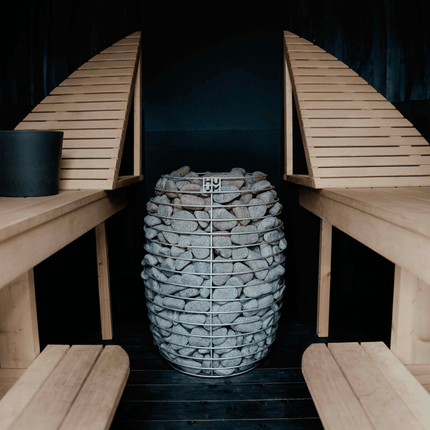

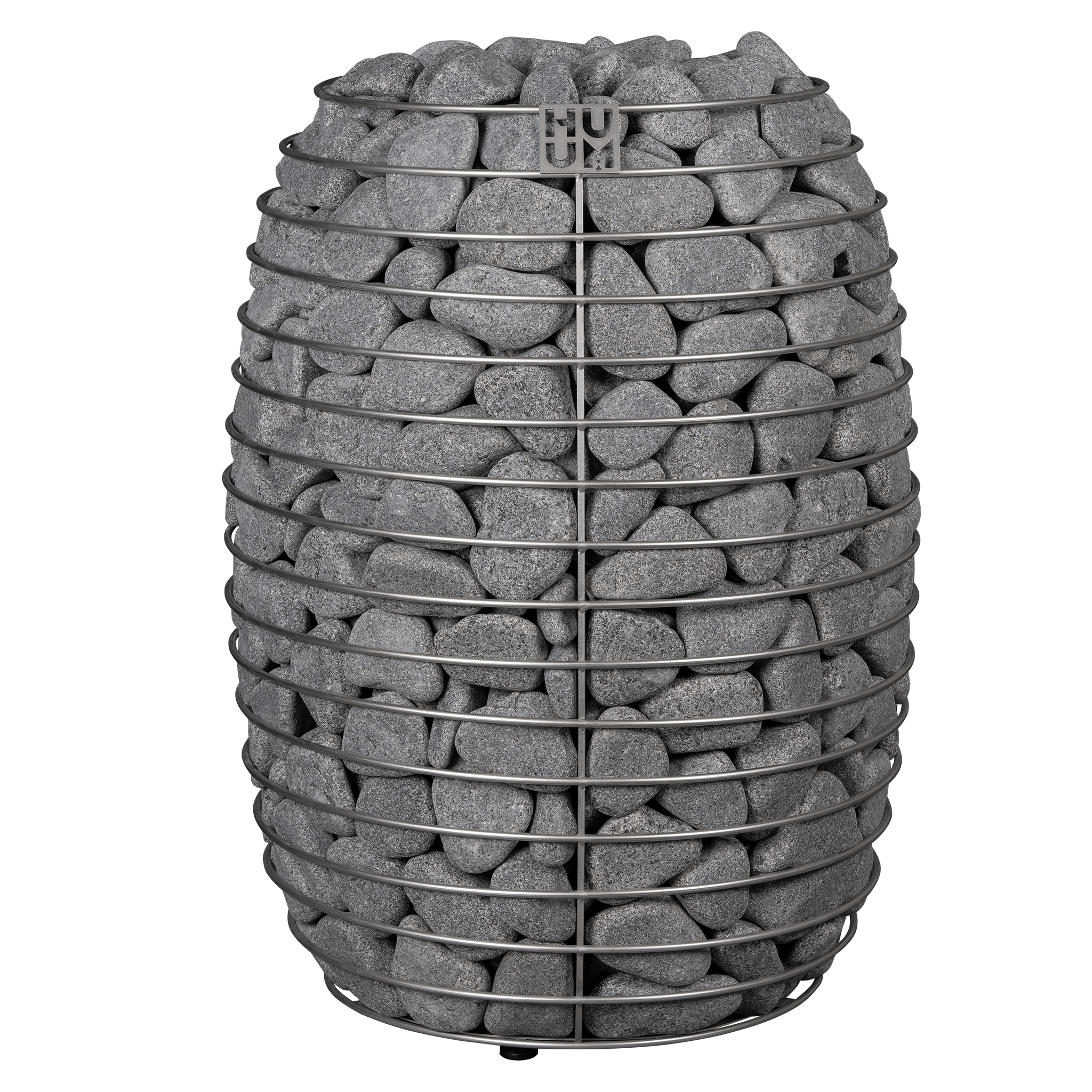

HUUM HIVE Electric Sauna Heater
About this HUUM Electric Sauna Heater
*stones & controller to be purchased separately*
(We recommend 17x boxes (255 kg) of Huum 5-10 cm stones. You can find the recommended sauna stones here).
The HUUM HIVE electric sauna heater features high-quality materials with and award-winning design inspired by nature.

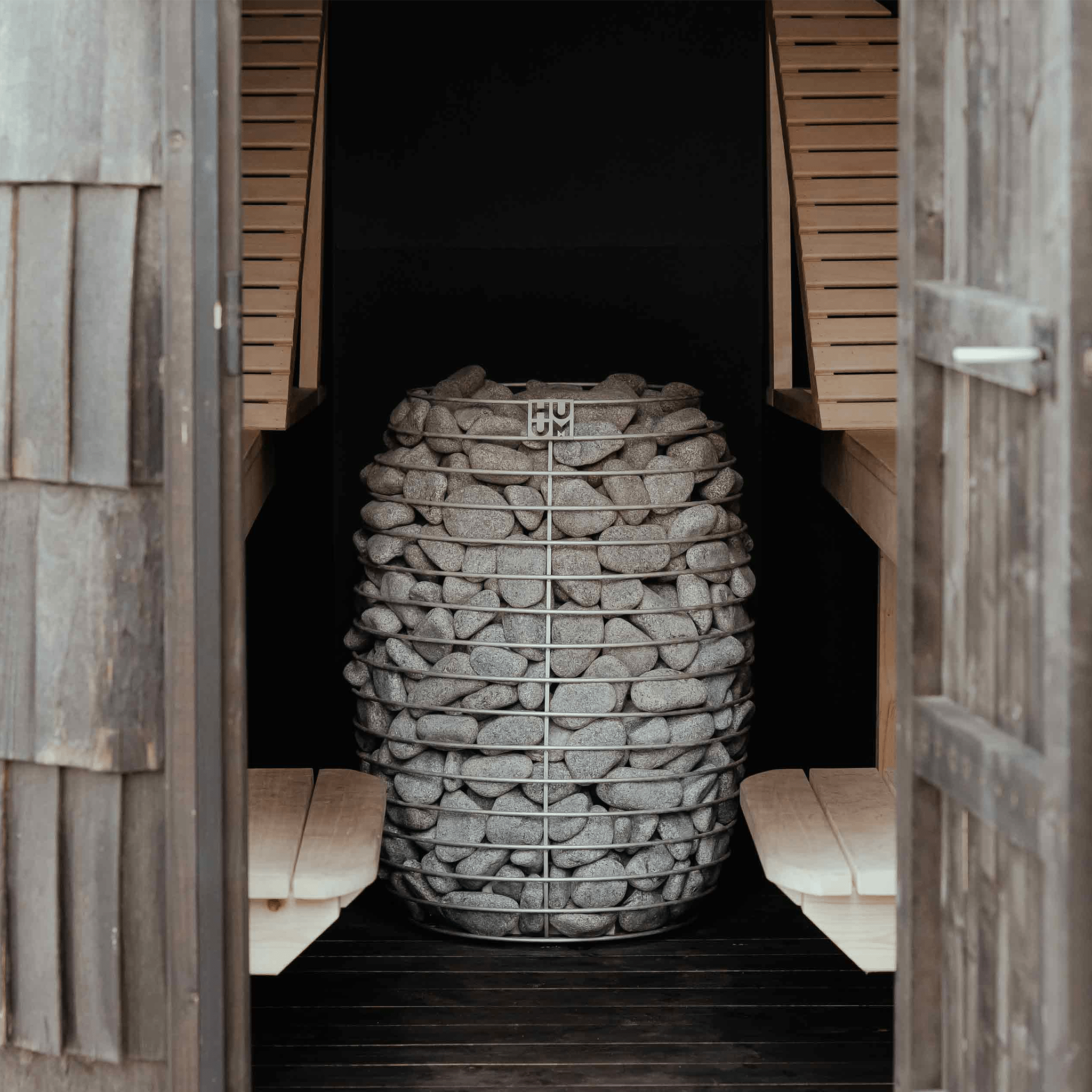

The HUUM HIVE electric sauna heater is an elegant solution for bigger saunas, for example, for spas and gyms. This floor-mounted heater holds up to 250 kg of stones, which ensure long-lasting hot steam even for larger groups, without compromising on design.

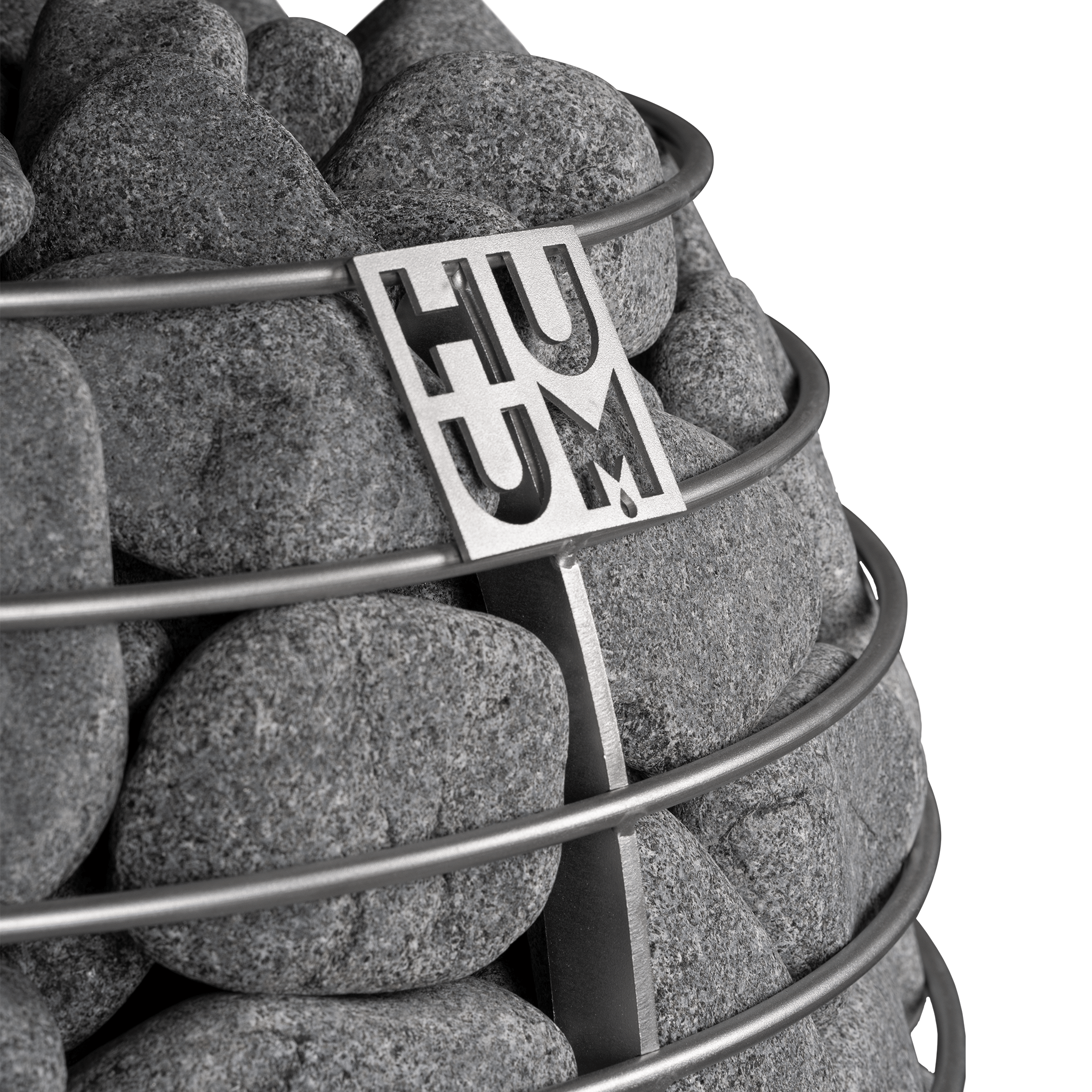

HUUM heaters are manufactured in Estonia, where they are crafted from stainless steel and other high-quality materials. Combined with a stylish, minimalistic Nordic design, the HUUM HIVE makes a statement piece in a home sauna.
Controller: Depending on the controlling system you will opt for, the heater can be purchased either with the UKU Local (an easy-to use controller without Wi-Fi or mobile functionality), or the UKU Wi-Fi Controller (a remote-control option with Wi-Fi capabilities).

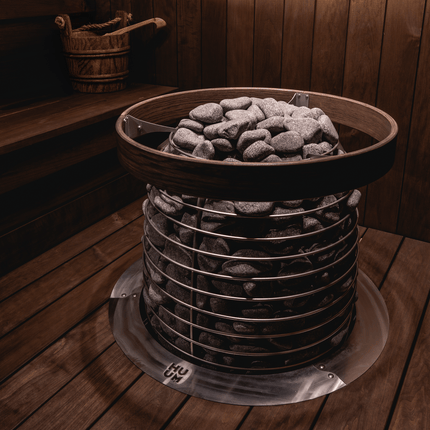

Air Tunnel: As of the 15/04/2024, all Hive heaters now include the Hive Air Tunnel as standard and it does not need to be bought separately.

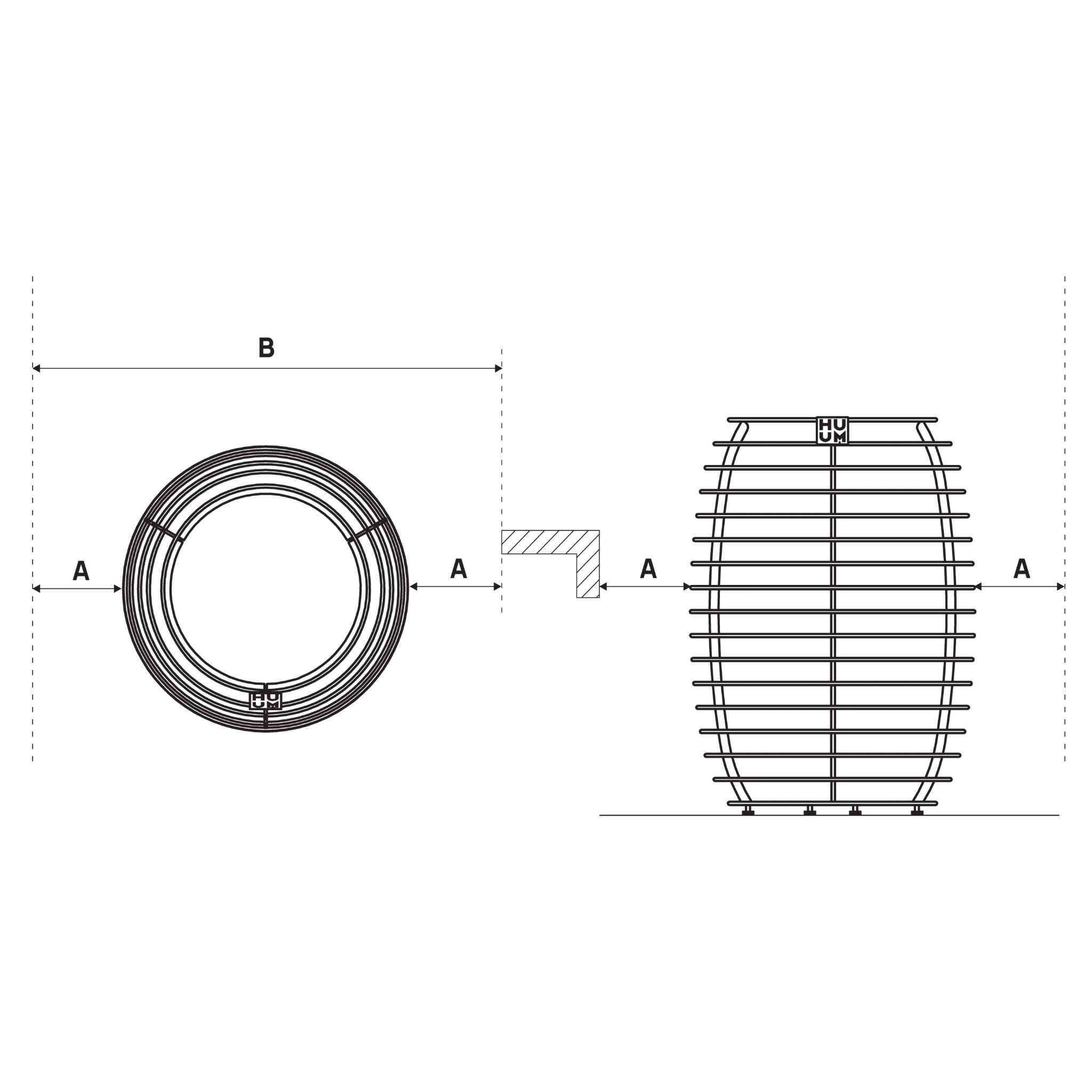

Safety Distances: See the wider image bank of this heater for a diagram about this heater's safety distances:
12kW: A= 4.73 in,120 mm & B= 31.5 in, 800 mm;
15kW: A= 5.91 in, 150 mm & B= 33.86 in, 860 mm;
18kW: A= 7.1 in, 180 mm & B= 36.22 in, 920 mm
*SUFFICIENT AMOUNT OF STONES TO BE PURCHASED SEPARATELY
Product Specification
This heater must be installed by a qualified electrician. The HIVE heater can ONLY be installed on a three-phase 400VAC power supply.
Please refer to the "HUUM Electric Sauna Heaters - Single Phase Connection" in the "Downloadable Files" tab if installing the electric heater on a single-phase power supply.
Please ask your electrician to take photos when installing the heater for the first time in the unlikely case there are any issues with the heater further down the line. We will ask for these to diagnose the issue as best as possible.
| Model |
HIVE 12
|
HIVE 15
|
HIVE 18
|
|
Sauna room size
|
12-18 m³
|
15-23 m³
|
18-28 m³
|
|
Effect
|
12 kW
|
15 kW
|
18 kW
|
|
Dimensions
|
|
|
|
|
Height
|
750 mm
|
750 mm
|
750 mm
|
|
Width
|
560 mm
|
560 mm
|
560 mm
|
|
Depth
|
560 mm
|
560 mm
|
560 mm
|
|
Empty weight
|
20 KG
|
21 KG
|
22 KG
|
|
Stone capacity
|
250 KG (17 packs)
|
250 KG (17 packs)
|
250 KG (17 packs)
|
|
Electrical (3N~ 400V)
|
|
|
|
|
Front Fuse
|
3 X 20 A
|
3 X 25 A
|
3 X 32 A
|
|
Cable Gauge
(UKU Main Module Input)
|
5-core 4 mm² SWA
|
5-core 4 mm² SWA
|
5-core 6 mm² SWA
|
|
Cable Gauge
(Heater Input)
|
5-core 4 mm² H07RN-F
|
5-core 4 mm² H07RN-F
|
5-core 6 mm² H07RN-F
|
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimized for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA- certified.
If you want to learn more about our HUUM heaters and explore more options, click on the following link: Our HUUM sauna heater collection.
HUUM UKU Controllers
The HUUM HIVE can be purchased with the UKU Wi-Fi. Below are the features of the controller.
UKU Wi-Fi:
-
For heaters up to 18 kW
-
Remote control via mobile app; Android / iOS
-
Connectable to lights
-
Unlimited users
-
Door magnet
-
Overheating protection
-
Timer
-
Child safety lock
- Available in Black Glass or Mirror (Gold upon request too)
