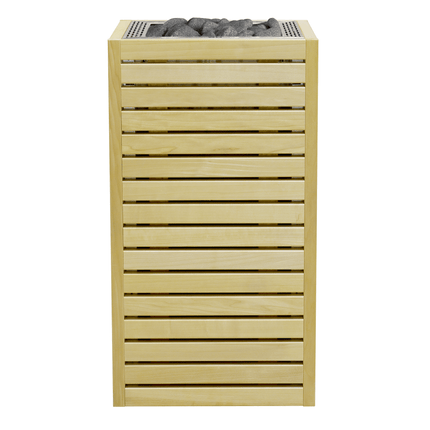

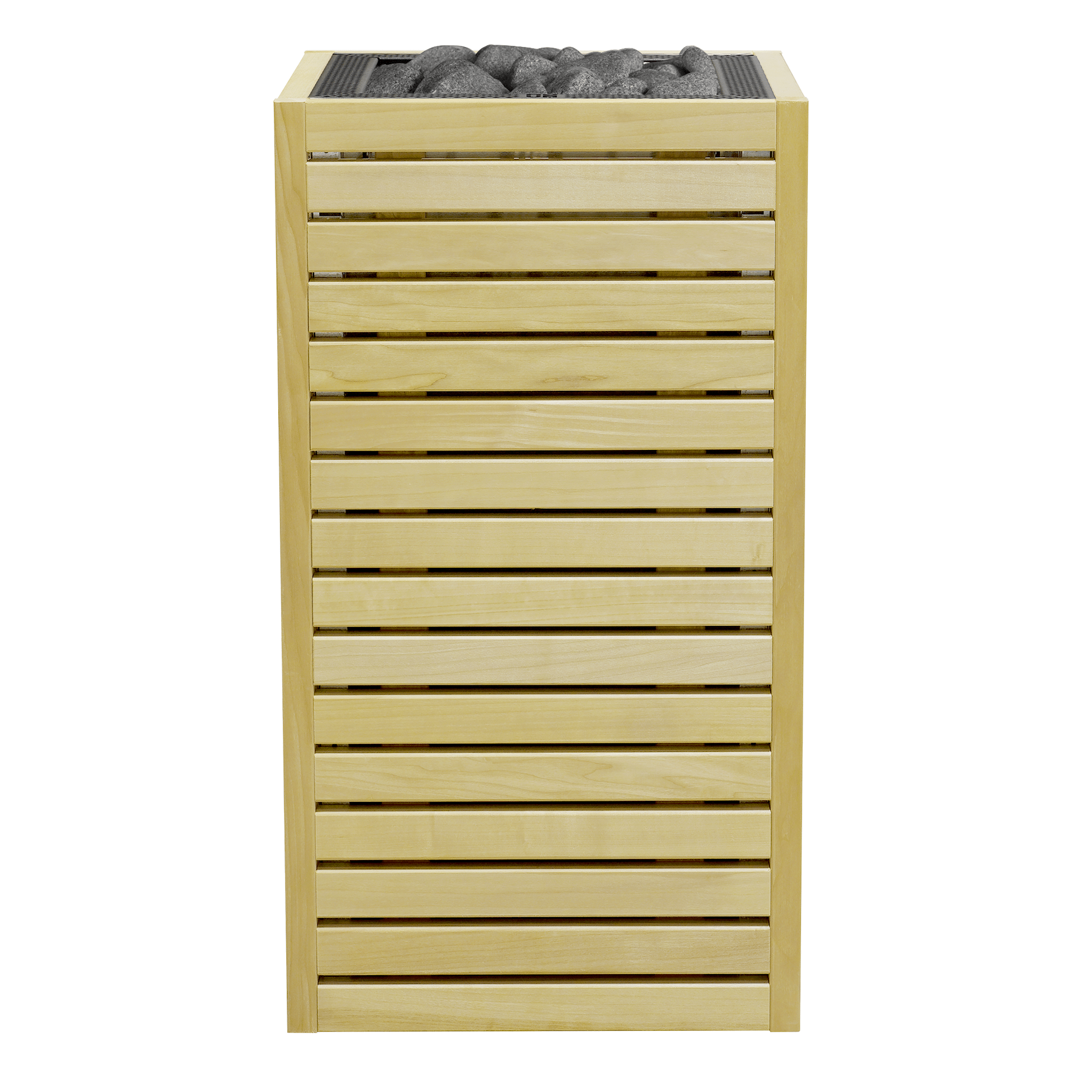

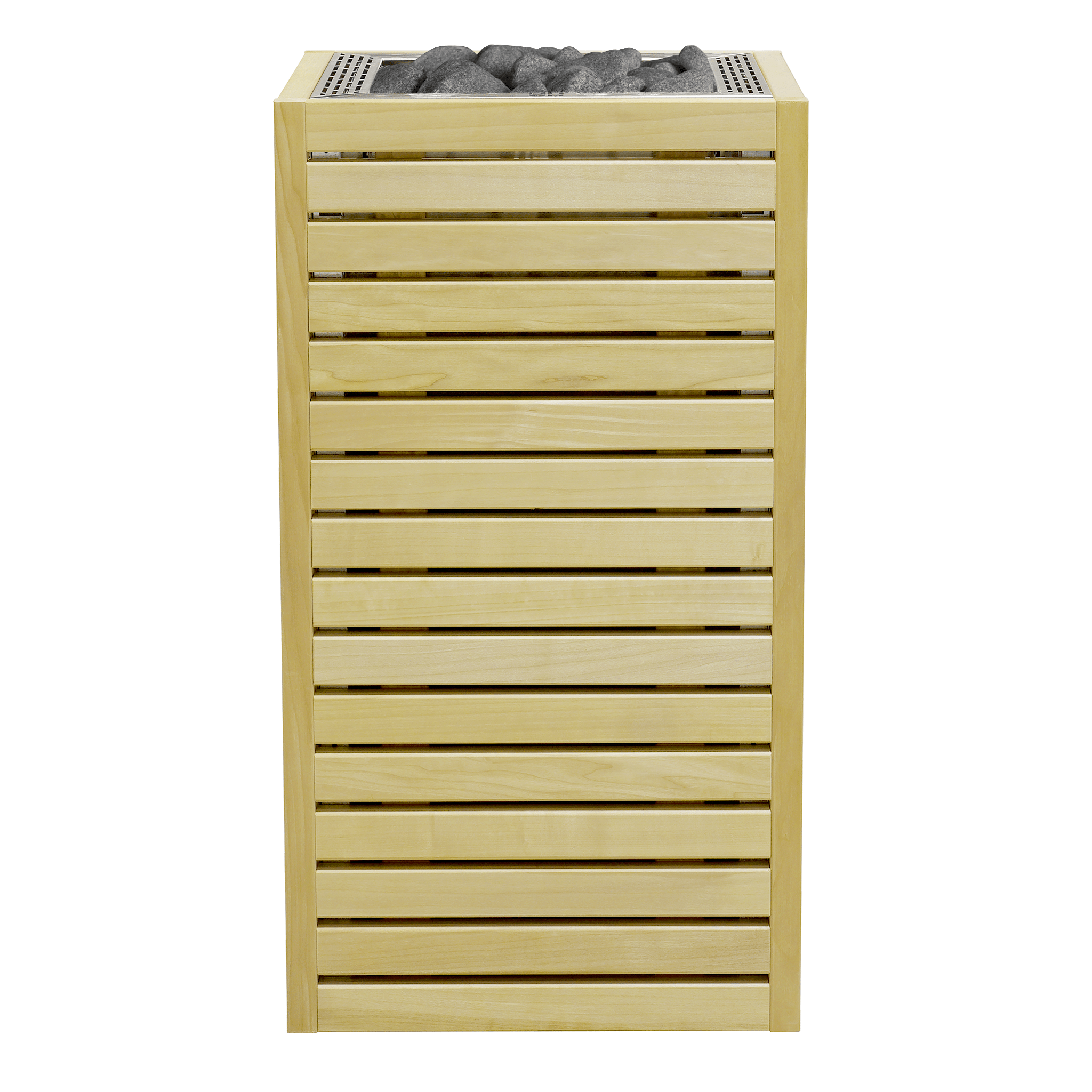

HUUM CORE Electric Sauna Heater SS with Original Alder Cladding
About this HUUM Electric Sauna Heater
*stones & controller to be purchased separately*
(We recommend 2 x 15 kg boxes of Huum 5-10 cm sauna stones)
The HUUM CORE SS (Stainless Steel) electric sauna heater features high-quality materials with flexible design solutions, and is finished with a stainless steel top cover. This package includes HUUM's original alder wood cladding for all four sides, providing a beautiful natural finish that complements any sauna interior.
The HUUM CORE is a powerful electric sauna heater offering the option of a custom design to suit the design of your sauna. The compact size of this sauna heater makes it a perfect fit for smaller home saunas. CORE will heat your sauna efficiently, whilst providing a soft, pleasant steam experience.
The HUUM Core SS model has a stainless steel top cover and comes complete with original alder wood cladding panels for all four sides.
HUUM heaters are manufactured in Estonia, where they are crafted from stainless steel and other high-quality materials. Combined with a flexible, stylish Nordic design and the warmth of natural alder wood, the HUUM CORE makes a statement piece in a home sauna.
Controller: Depending on the controlling system you will opt for, the heater can be purchased either with the UKU Local (an easy-to use controller without Wi-Fi or mobile functionality), or the UKU Wi-Fi Controller (a remote-control option with Wi-Fi capabilities).
Safety Distances: See the wider image bank of this heater for a diagram about this heater's safety distances:
6kW: A= 40 mm & B= 480 mm & Upwards = 1200 mm
9kW: A= 40 mm & B= 480 mm & Upwards = 1200 mm
10.5kW: A= 40 mm & B = 480 mm & Upwards = 1200 mm
*SUFFICIENT AMOUNT OF STONES TO BE PURCHASED SEPARATELY
This heater must be installed by a qualified electrician. The CORE heater can be installed on both single phase 240v and three phase 400v power supplies.
Single Phase Connection: Please refer to the "HUUM Electric Sauna Heaters - Single Phase Connection" in the "Downloadable Files" tab if installing the electric heater on a single-phase power supply.
Please ask your electrician to take photos when installing the heater for the first time in the unlikely case there are any issues with the heater further down the line. We will ask for these to diagnose the issue as best as possible.
Refer to the installation manual for cable requirements. Click on the "Downloadable Files" tab to find the installation manual.
*Click on the Technical Specification tab for more information.
Warranty Information
For full details on product warranty, see HUUM's Limited Warranty Terms and Conditions. The heating elements are not included in the warranty.
About HUUM
HUUM is the leading manufacturer when it comes to unique designs and technology. HUUM has been awarded for their innovative and stylish sauna products. In 2015, the DROP sauna heater won the Red Dot Award for Product Design. The inspiration for the HUUM products come from nature. Combined with age-old sauna knowledge, smart technology and modern Nordic design, the HUUM heaters are a stylish and robust choice for any sauna. The amount of stones in HUUM heaters are optimized for the perfect, soft steam experience. The innovative HUUM heaters are easy to use and have all been UK CA- certified.
If you want to learn more about our HUUM heaters and explore more options, click on the following link: Our HUUM sauna heater collection.
HUUM UKU Controllers
The HUUM CORE can be purchased either with the UKU Local or the UKU Wi-Fi. Below are the features of the controller options.
UKU Local:
- For heaters up to 18kW
- Connectable to lights/ventilation and steamer
- Overheating protection
- Timer
- Child safety lock
- Available in a number of different colours, including black, white, wooden surrounds
UKU Wi-Fi:
- For heaters up to 18 kW
- Remote control via mobile app; Android / iOS
- Connectable to lights
- Unlimited users
- Door magnet
- Overheating protection
- Timer
- Child safety lock
- Available in Black Glass or Mirror (Gold upon request too)
HUUM Cable Specification
|
Power input to UKU Main Module |
Power output between UKU and Huum Heater |
|
SWA (steel wire armoured) |
SWA |
SiHF-J |
SiHF-J |
|
Single Phase 230v |
Three Phase 400v |
Single Phase 230v |
Three Phase 400v |
| Power (kW) |
mm2 |
mm2 |
mm2 |
mm2 |
| 3.5 |
3 x 2.5 |
- |
3 x 2.5 |
- |
| 4.5 |
3 x 4 |
5 x 1.5 |
7 x 1.5 |
5 x 1.5 |
| 6 |
3 x 6 |
5 x 1.5 |
7 x 2.5 |
5 x 1.5 |
| 9 |
3 x 10 |
5 x 2.5 |
7 x 2.5 |
5 x 2.5 |
| 10.5 |
3 x 10 |
5 x 2.5 |
7 x 2.5 |
5 x 2.5 |
| 12 |
- |
5 x 4 |
- |
5 x 4 |
| 15 |
- |
5 x 4 |
- |
5 x 4 |
| 18 |
- |
5 x 6 |
- |
5 x 6 |
